The Next Generation

The next Generation (currently Prototype v3) has an wider current output pin to perfectly fit in our breadboards.

Currentlty LF33CV and USB Mini B is missing because we dont had them yet...

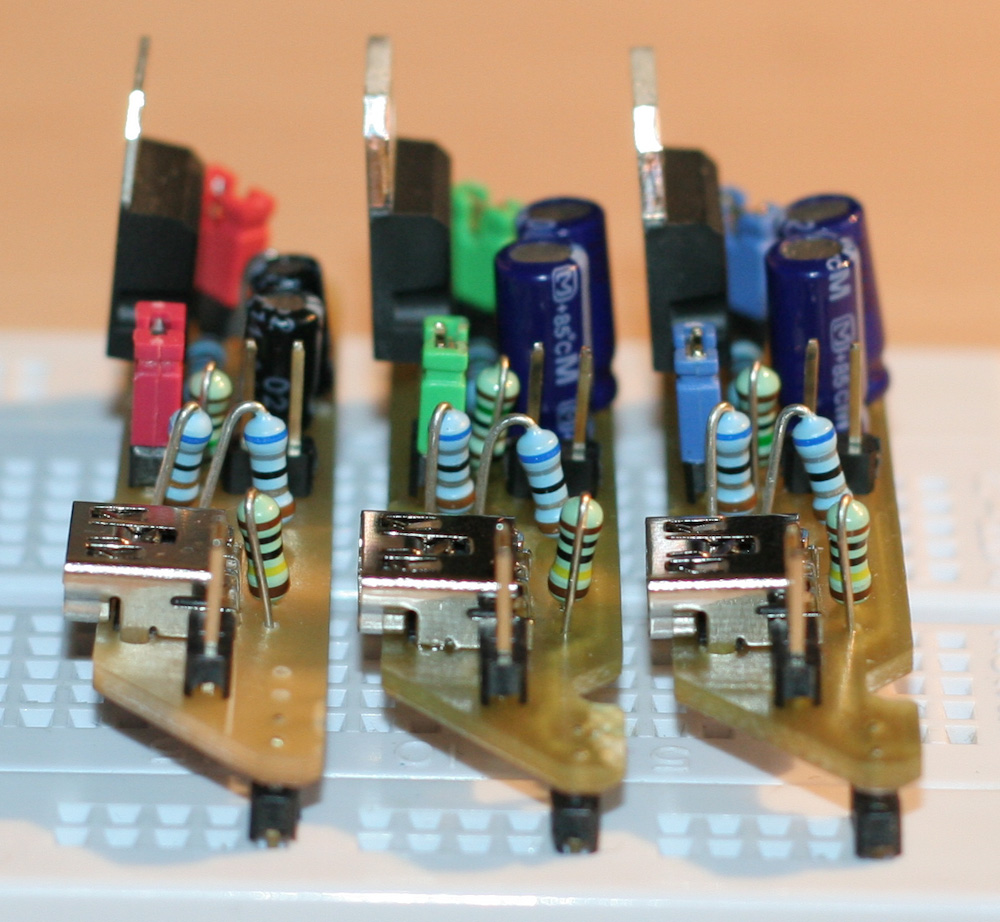

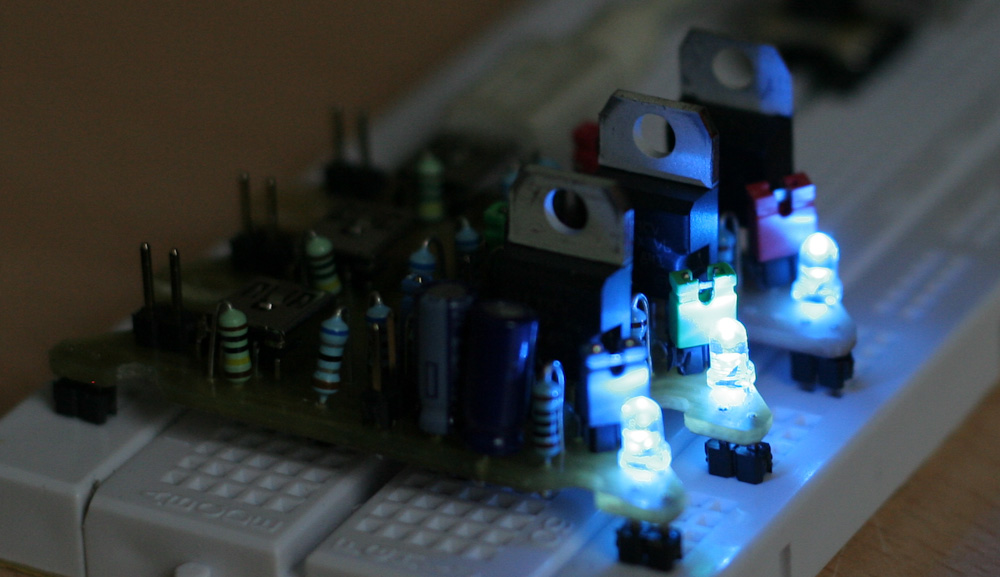

Three USBBB Power Sup Testing

Build Process

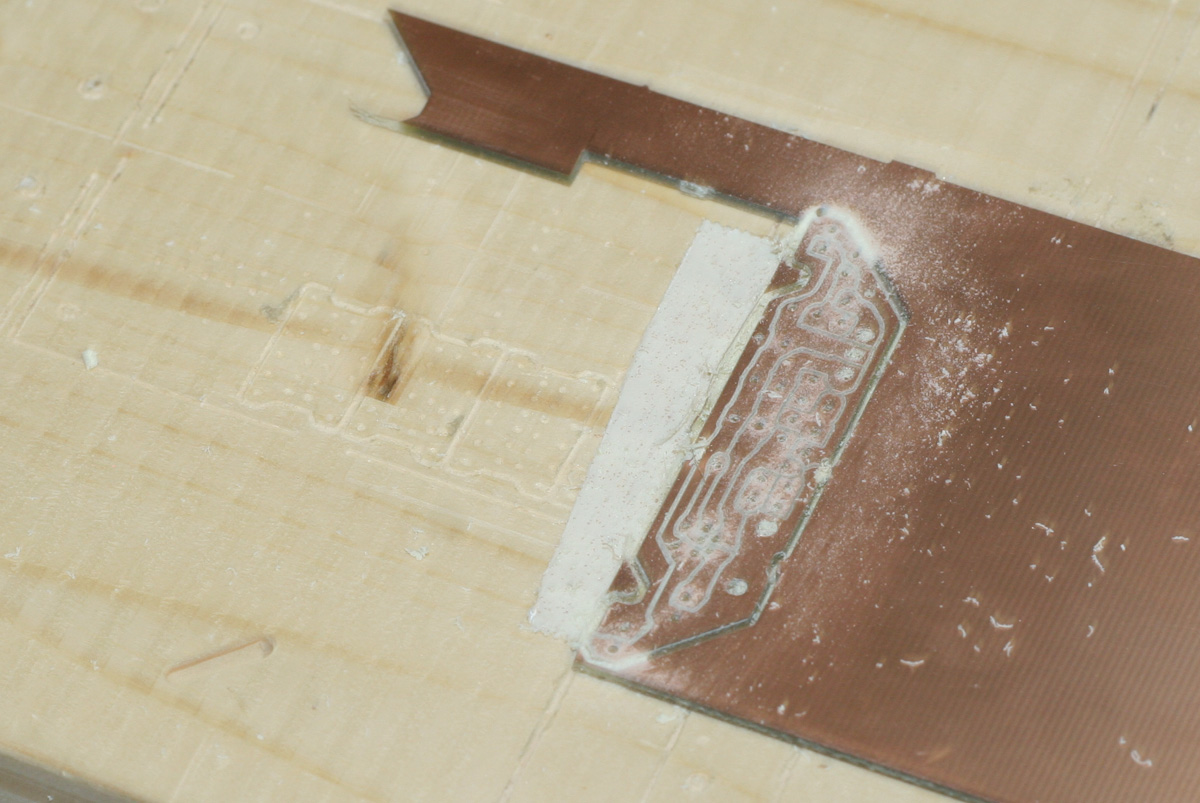

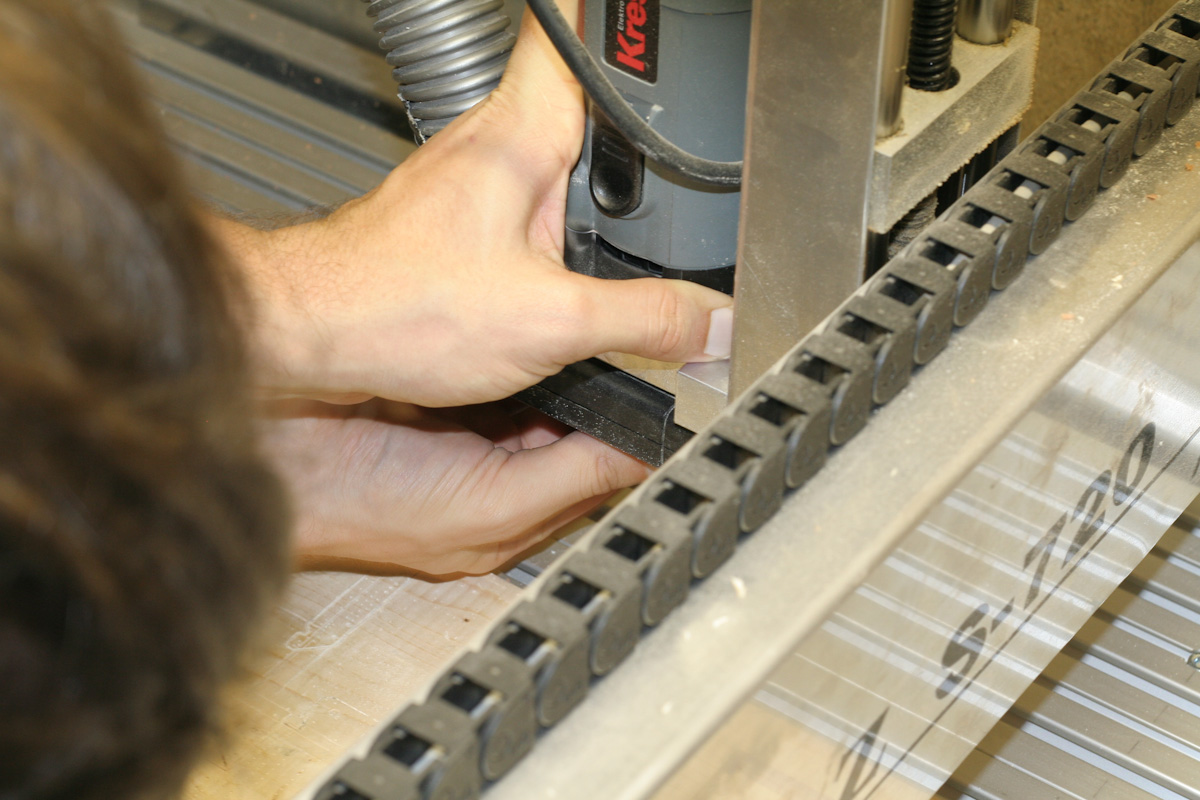

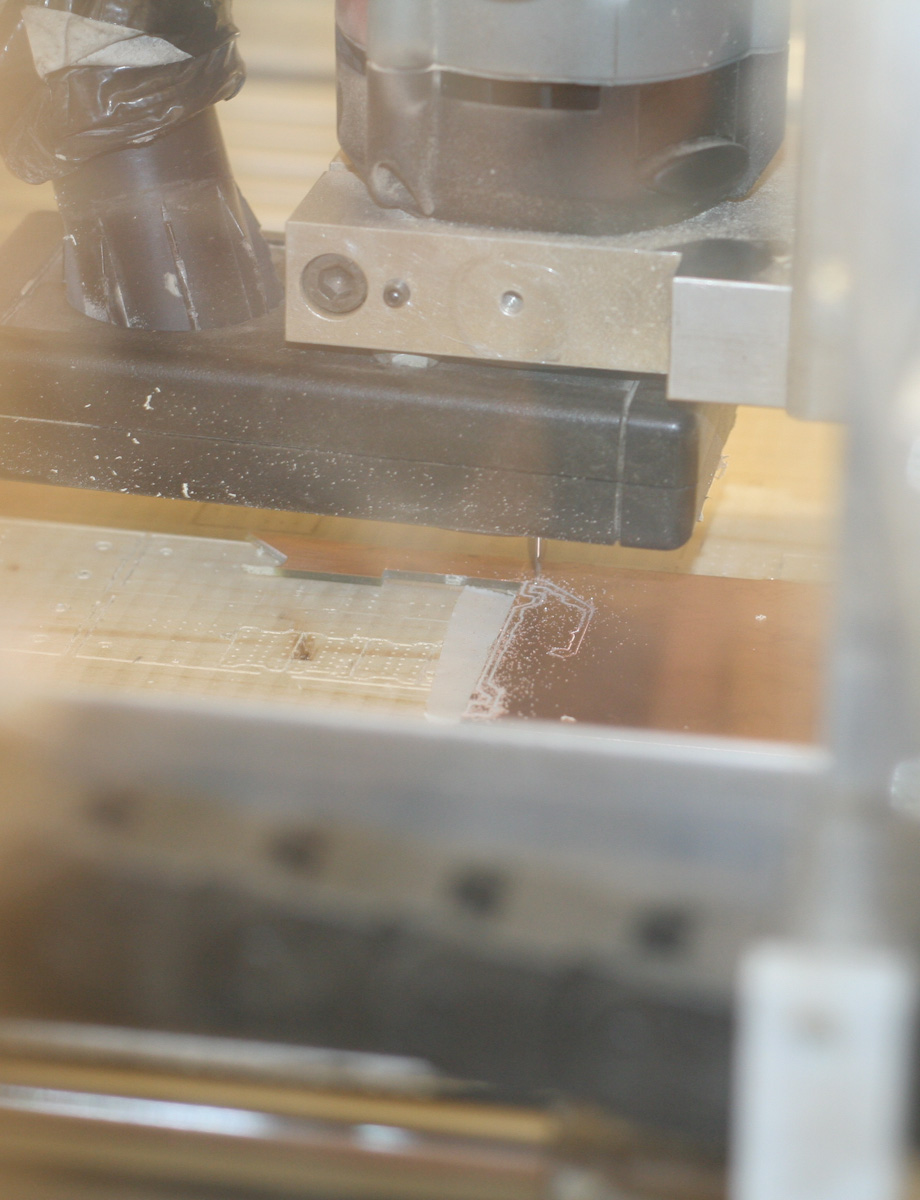

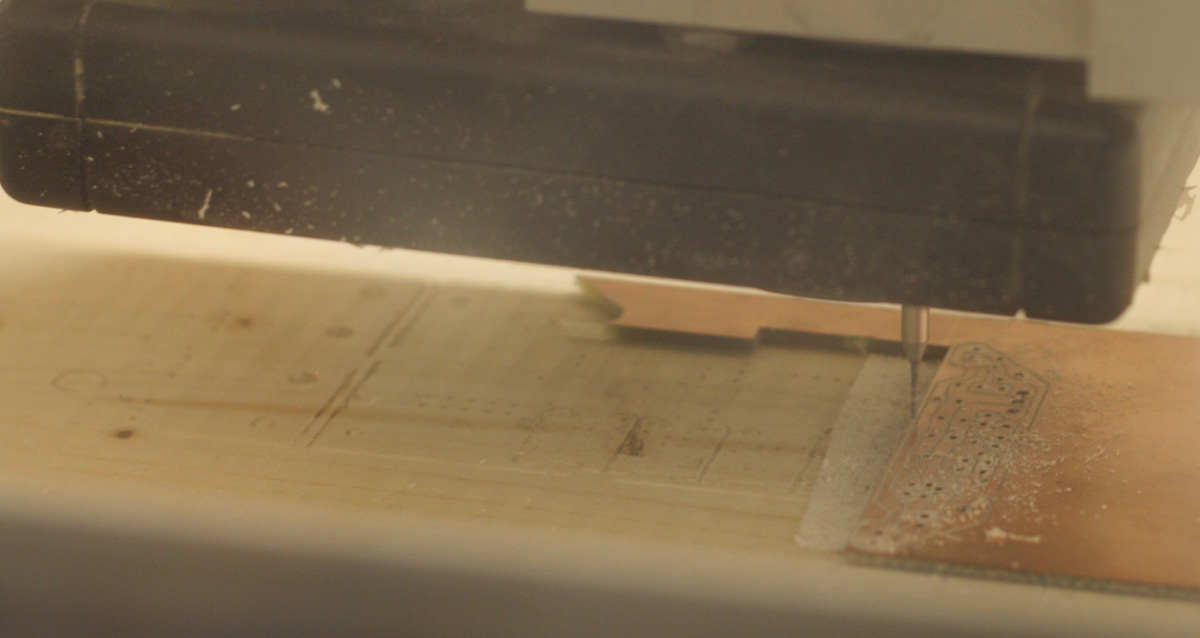

Insert new fräser Engravingi... ... and milling Next PCB is ready!

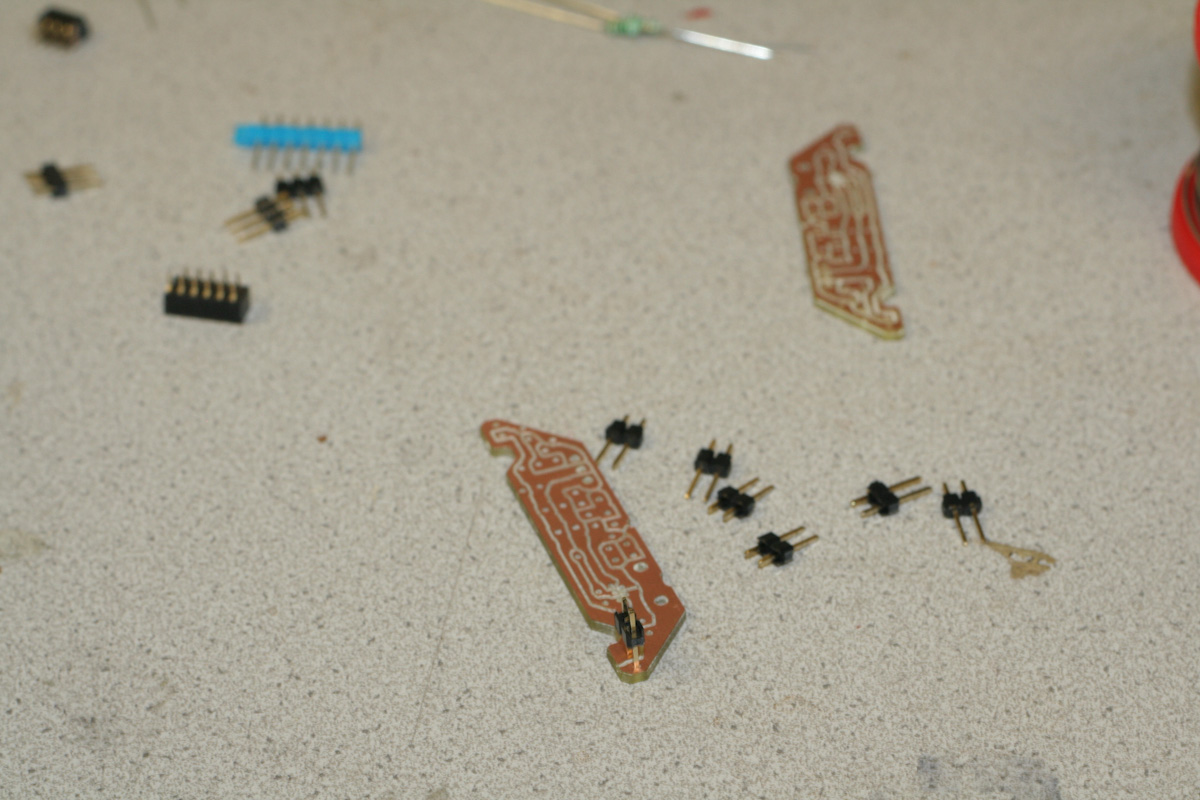

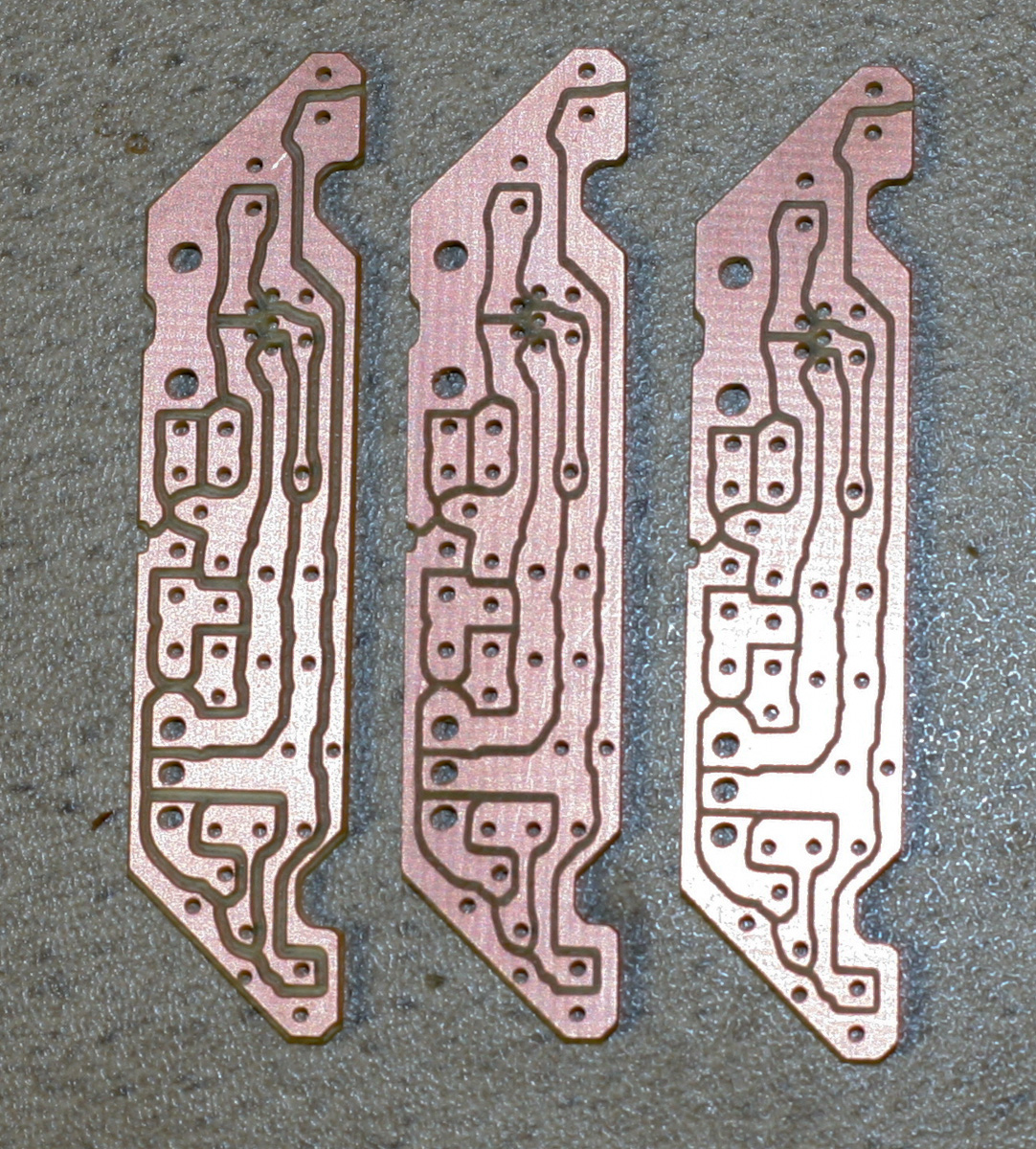

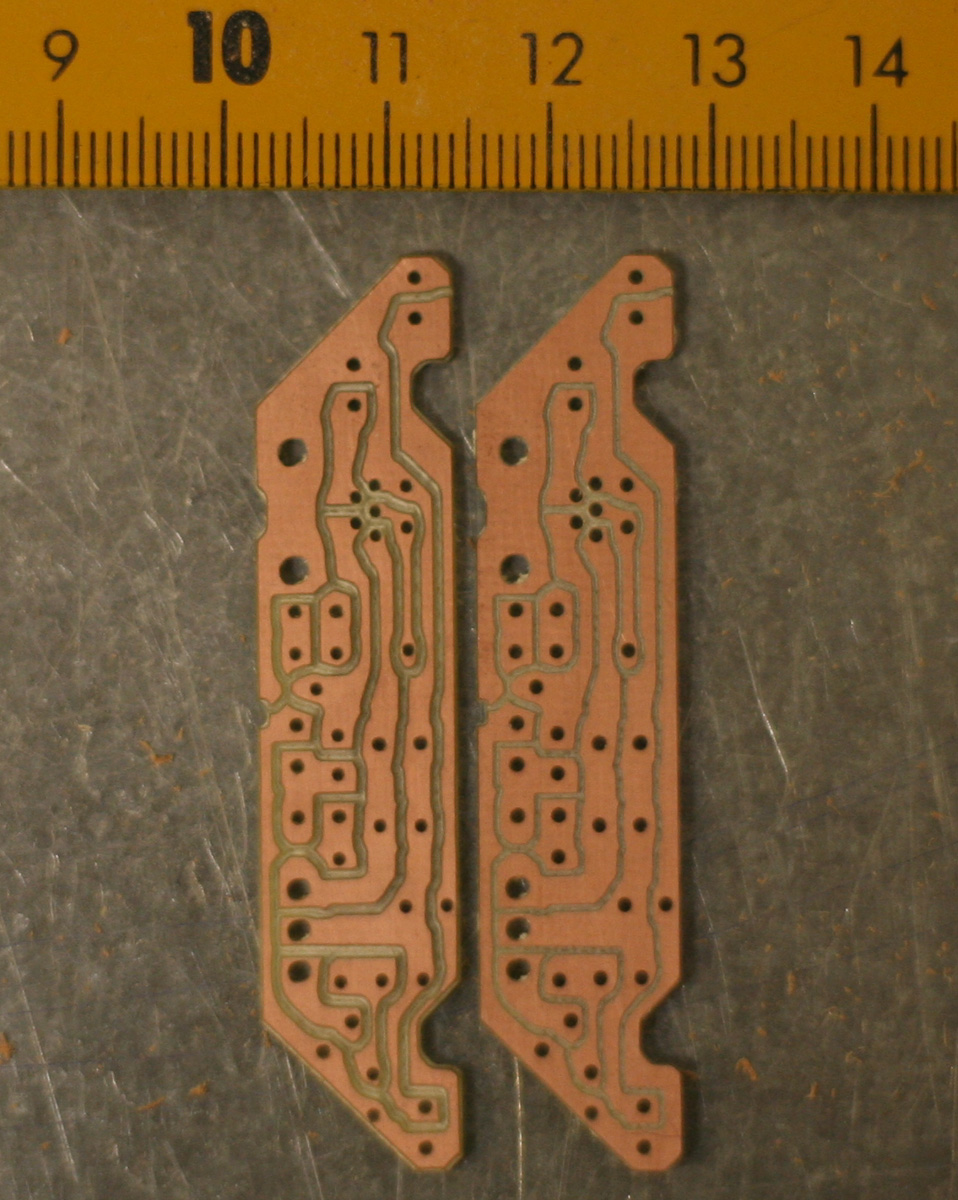

The first two milled PCB's All Three

Assemebling

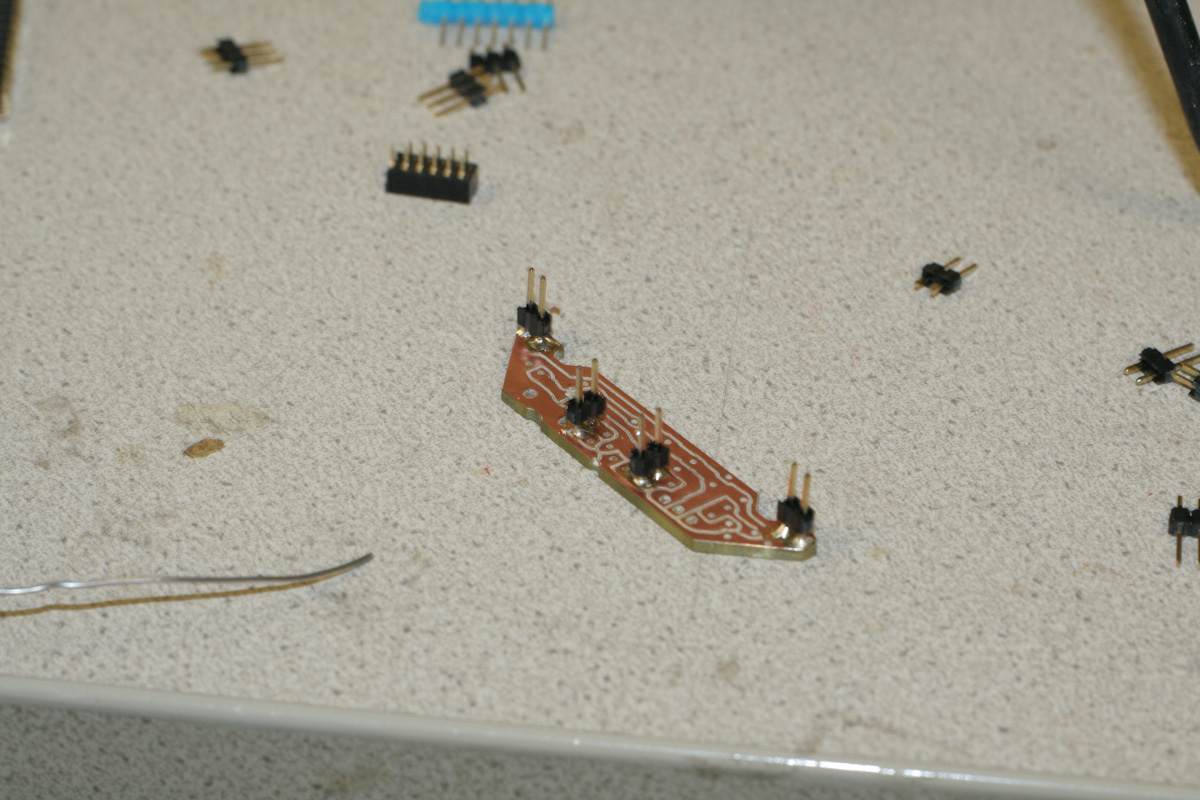

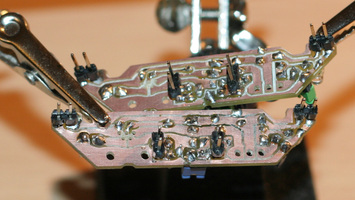

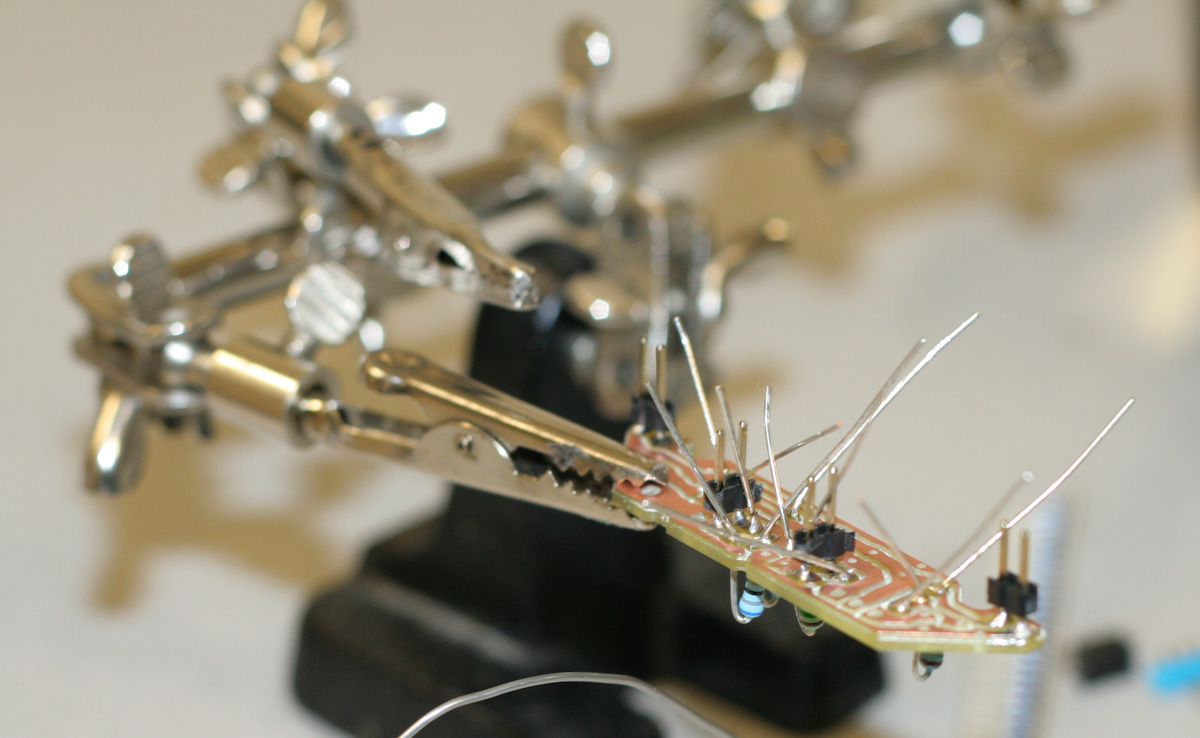

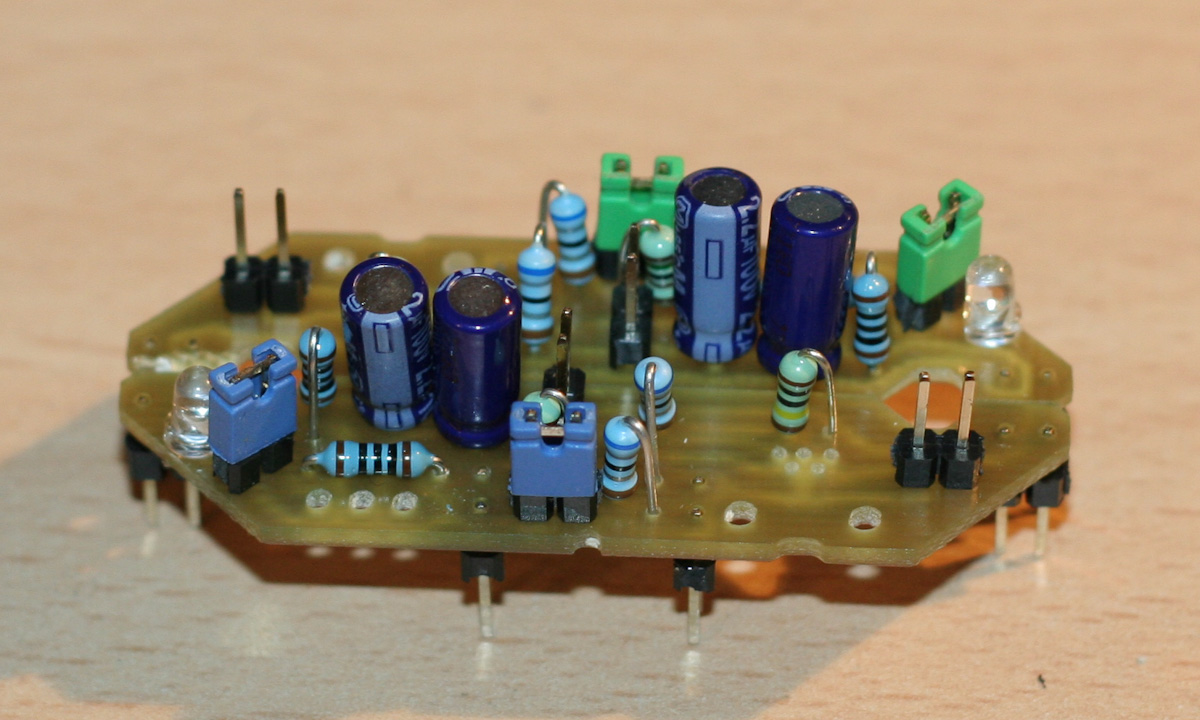

Assembling Some Pins later Soldering the resistors Backside

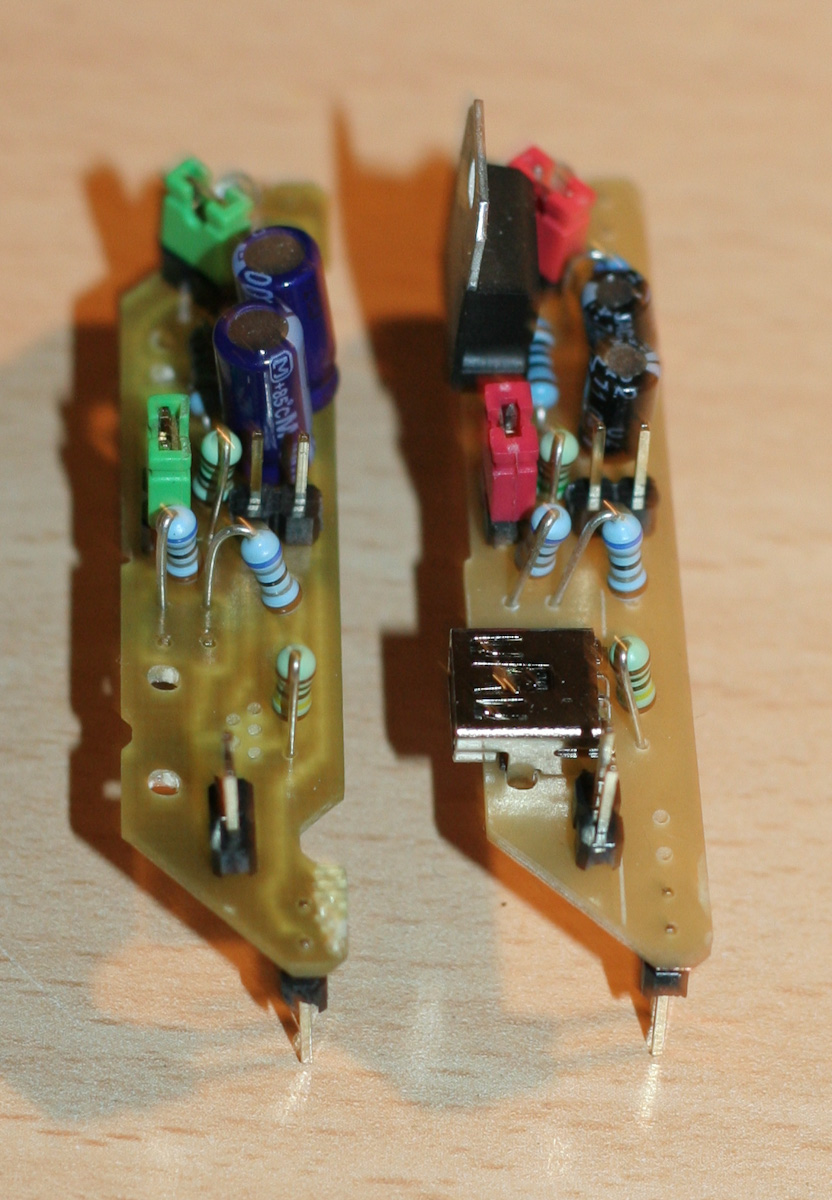

Symetrie! Even more symetrie v2 vs v3
